Technical Data Sheet

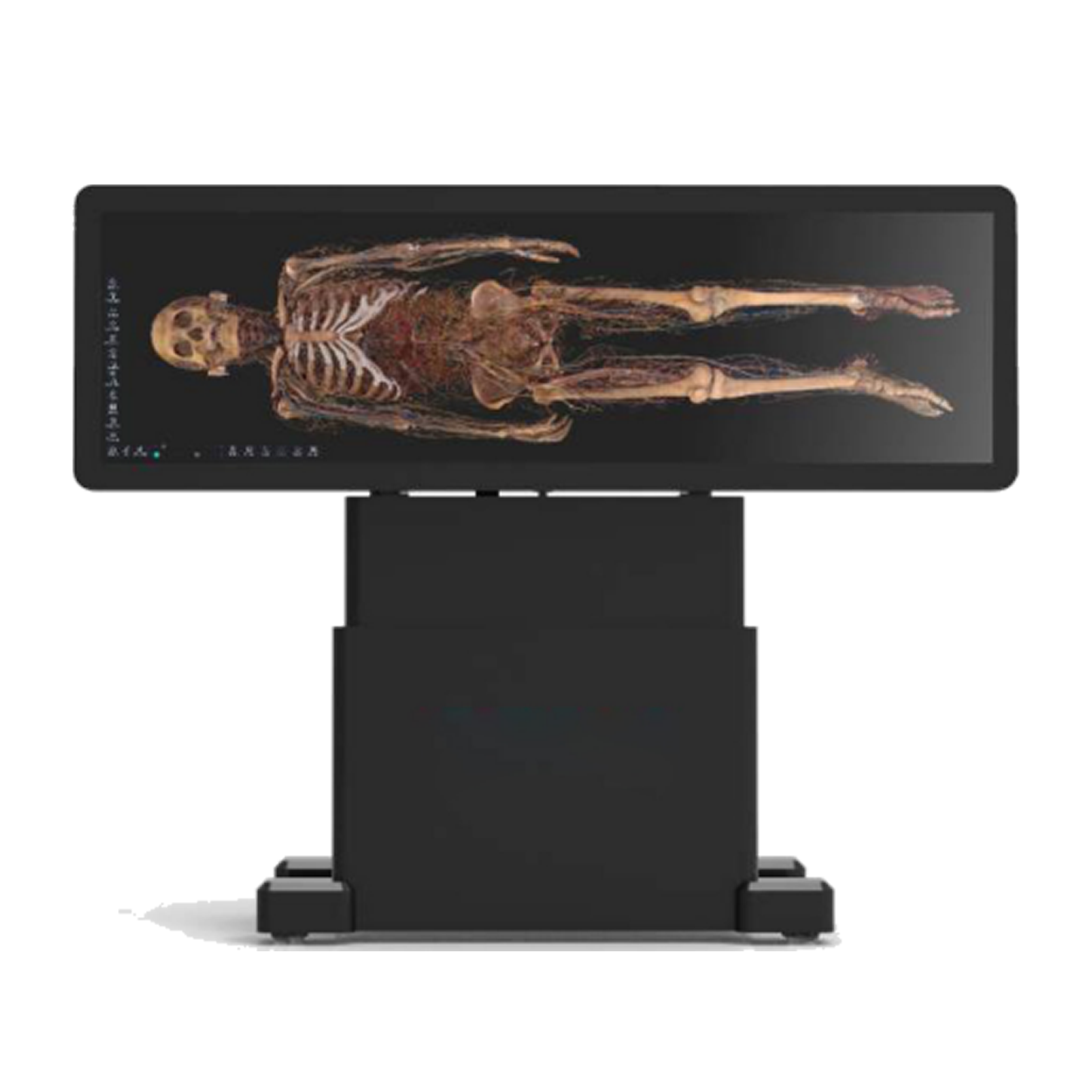

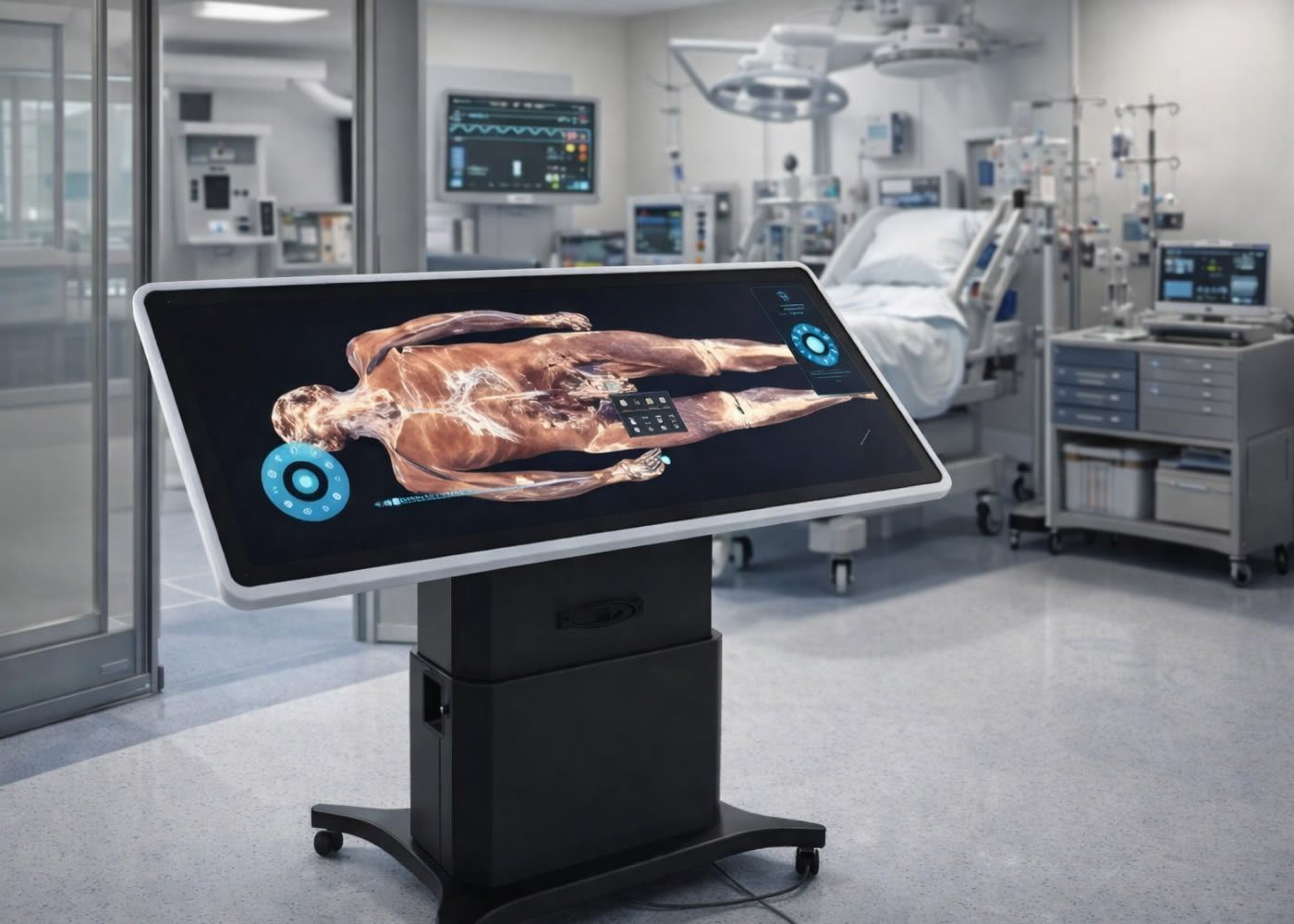

HD-Digital Human Virtual Anatomy Table

HD-Digital Human Virtual Anatomy Table
Key Features
3D Anatomical Reconstruction Based on 17,000 continuous layers of human sections.
0.1 mm Precision High fidelity for detailed anatomical study.
Ultra-High Resolution Anatomical skin 26000 × 16000 × 3.
Capture and Recording Allows screenshots and video recording for teaching materials.
Microscopic Structures Includes histology correlated with the organs.
Bilingual System Interface available in Chinese and English.
Applications
Medical Education Advanced anatomical teaching for universities and training centers.
Diagnostic Support Visual and structural support for medical analysis.
Clinical Practice Anatomical understanding applied to real-world scenarios.
Case Discussion Collaborative study with three-dimensional visualization.
Life Science Education Application in life sciences and specialized training.
Product Description
DESCRIPTION
Main system
The Digihuman Virtual Anatomy System uses 3D reconstruction technology to create virtual structures of the human body.
Visualization
Displays human-scale anatomical structures with touch interaction.
Exploration
Allows cuts and observations from any angle and across different layers.
Anatomical study
Integrates knowledge of human, local, and sectional anatomy.
Spatial training
Helps develop the concept of 3D spatial structure.
Anatomical base
More than 6000 reconstructed anatomical structures, detailed and realistic.
System Modules
MODULES
Human Anatomy Model
Includes systemic anatomy, local anatomy, sectional anatomy, and other modules. The 3D structure is reconstructed with realistic cross-sectional data from the human body.
Clinical Case Module
Includes numerous classic clinical cases with realistic CT or MRI images, case descriptions, reconstructed 3D data, and related anatomical structures.
Available Models
Pro Model
Pro Model

Multidisciplinary teaching platform and systematic dissection.

Configuration i7, 64G RAM, 2T SSD, RTX4080 Graphics Card, Windows 10
Resolution3840 × 1080
Size2290 × 770 × 889 mm
Weight340 kg

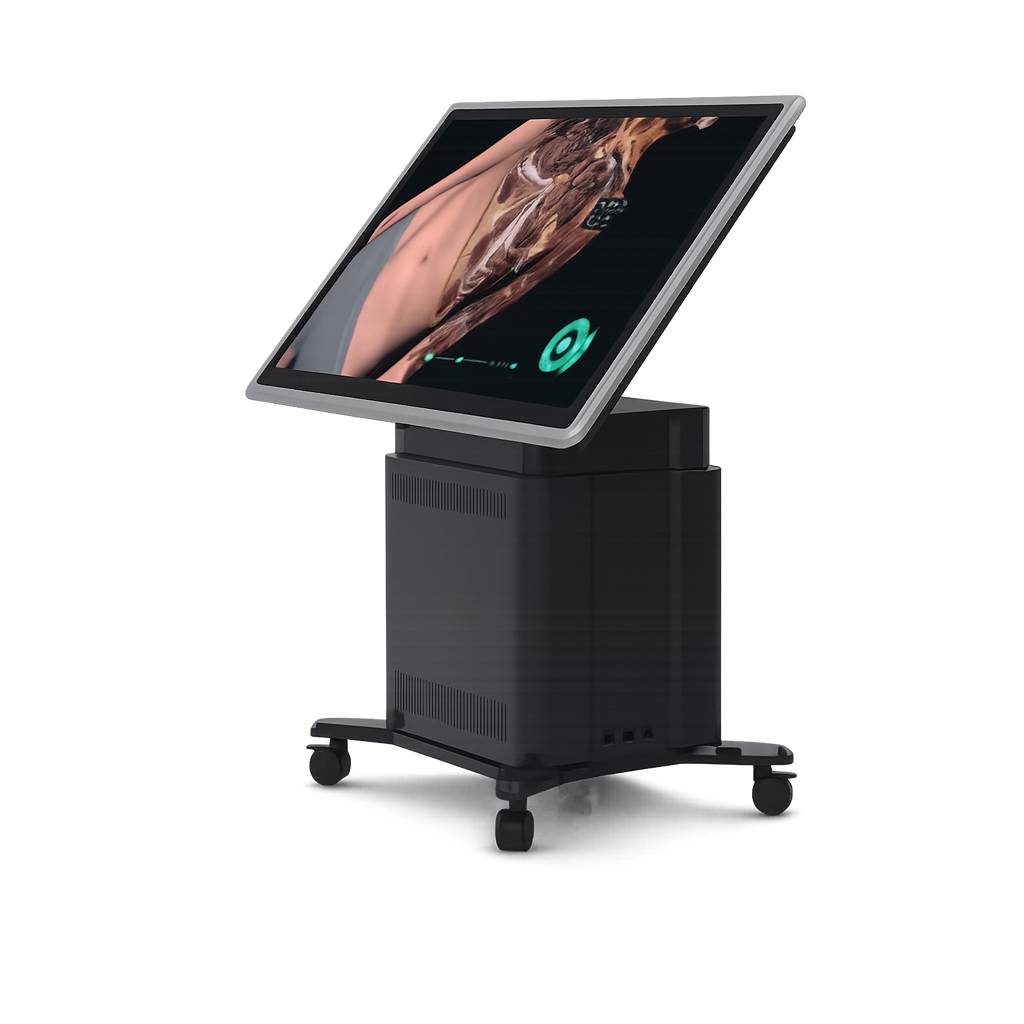

Mini Model
Mini Model

Used in experimental teaching and smart educational applications.

Configurationi7, 64G RAM, 2T SSD, RTX4080 Graphics Card, Windows 10
Resolution3840 × 2160
Size1668.3 × 809.5 × 860 mm
Weight123 kg

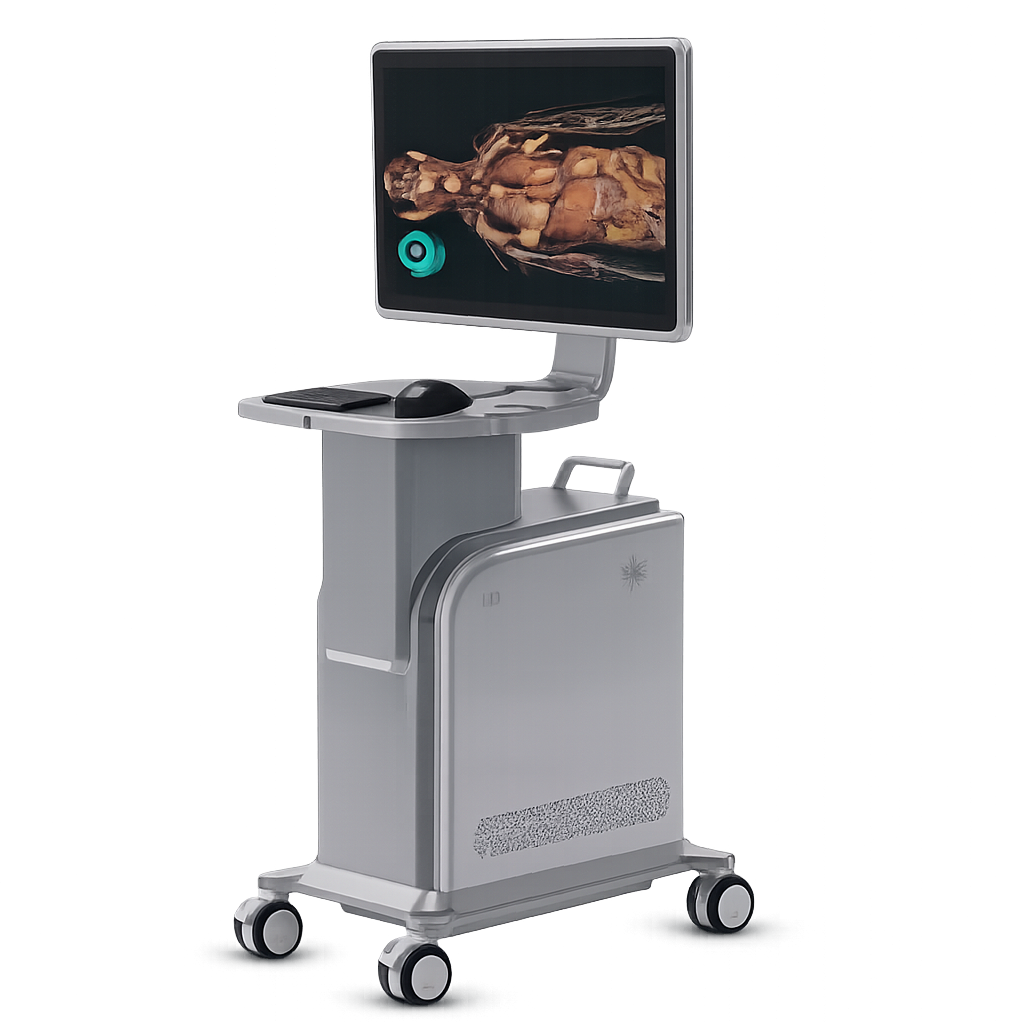

Maat Model

Maat Model

Local anatomy and mobile teaching with AI voice assistant.

Configurationi7, 64G RAM, 2T SSD, RTX4080 Graphics Card
Resolution3840 × 2160
Size1194.3 × 601.6 × 548.7 mm
Weight44 kg
Touch Gesture Guide
TOUCH GESTURES
1 finger
Rotation
2 fingers
Zoom in / out
3 fingers
Pan
5 fingers
Position operation panel
Animal Anatomy Module
ANIMAL ANATOMY
Included species
Dogs, fish, rats, pigs, rabbits, and sheep.
Functions
Includes image and tomography resources, incisions, and hierarchical anatomy studies.
* Information structured from the HD-Digital Human Virtual Anatomy Table document shared by the client. Product and model images must be replaced with the final official versions.
