Technical Data Sheet

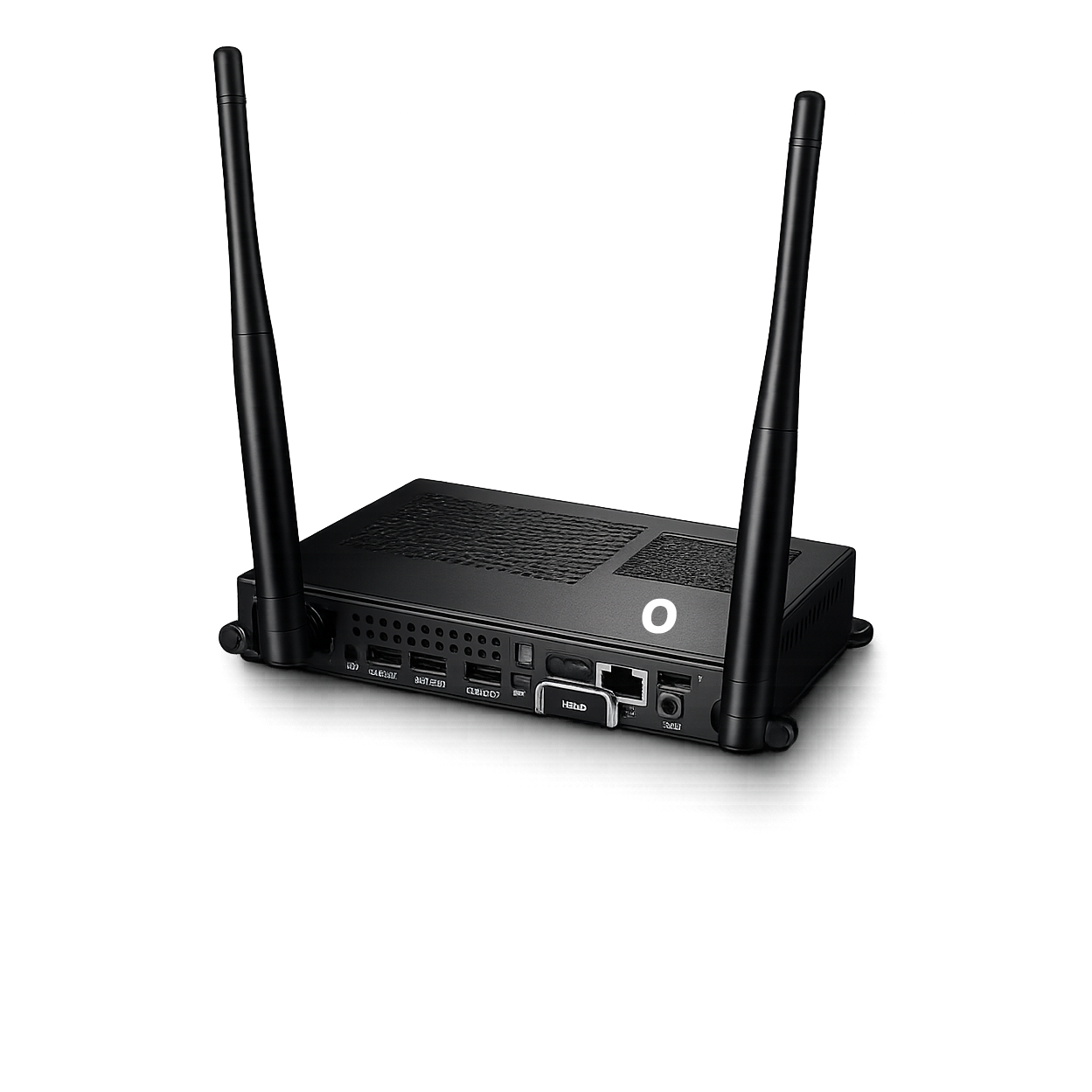

OPSCREEN PC i7 · OPS Module / Industrial Mini PC

OPSCREEN PC i7 OPS module
Key Features
Intel Core i7 High-performance processor
8GB / 16GB RAM Expandable DDR4 memory
NVMe SSD 256GB / 512GB storage
WiFi + Bluetooth Integrated wireless connectivity
OPS Compatible Designed for interactive displays
HD Audio Digital audio output
Processor
CPU
Processor
Intel Core i7
Architecture
64-bit
Frequency
Up to 4.7 GHz
Graphics
Intel UHD Graphics
Chipset
Intel H510 / equivalent
Performance
MEMORY
Standard RAM
8GB DDR4
Maximum RAM
32GB DDR4
Storage
256GB NVMe SSD
Expansion
Additional SSD / HDD
Connectivity
PORTS
USB
USB 3.0 ×3
HDMI
HDMI OUT ×1
DisplayPort
DP OUT ×1
LAN
RJ45 Gigabit Ethernet
WiFi
Dual Band 2.4GHz / 5GHz
Bluetooth
Bluetooth 5.0
Operating System
SOFTWARE
Operating System
Windows 11 Pro
Compatibility
Windows / Linux
Recommended Use
OPSCREEN interactive displays
General
GENERAL
Type
OPS Module / Mini PC
Voltage
12V DC
Operating Temperature
0° – 40°C
Usage
Education / Business / Conferences
Specifications are subject to change depending on hardware configuration.
