Technical Data Sheet

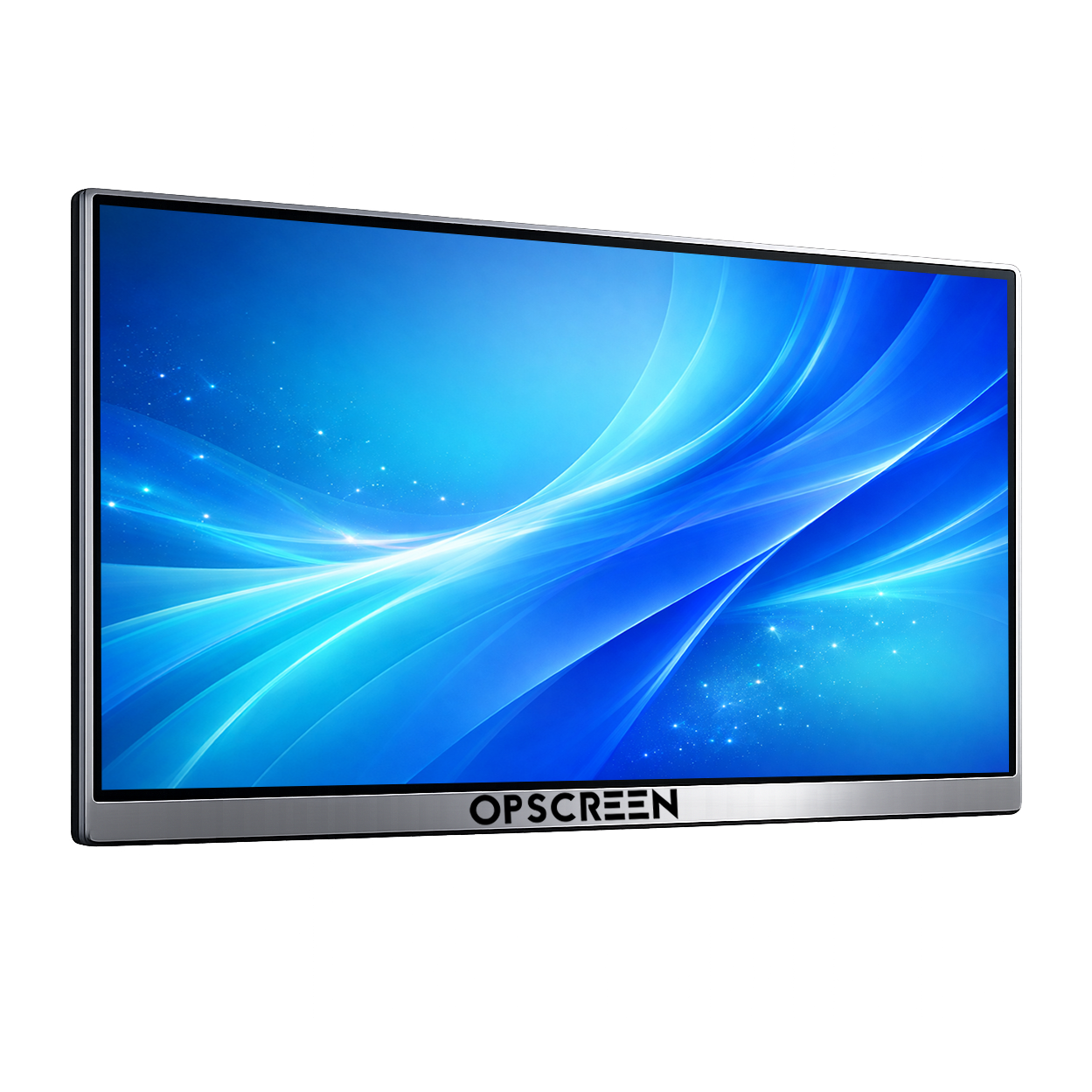

ELITE Series Interactive Display · 65” / 75” / 86” / 98” / 110”

ELITE Series Interactive Display
Key Features
4K UHD 3840 × 2160 resolution with excellent image quality.
Android 13.0 Integrated system for agile and stable operation.
PC Module (Optional) Expandable with OPS or mini/micro PC.

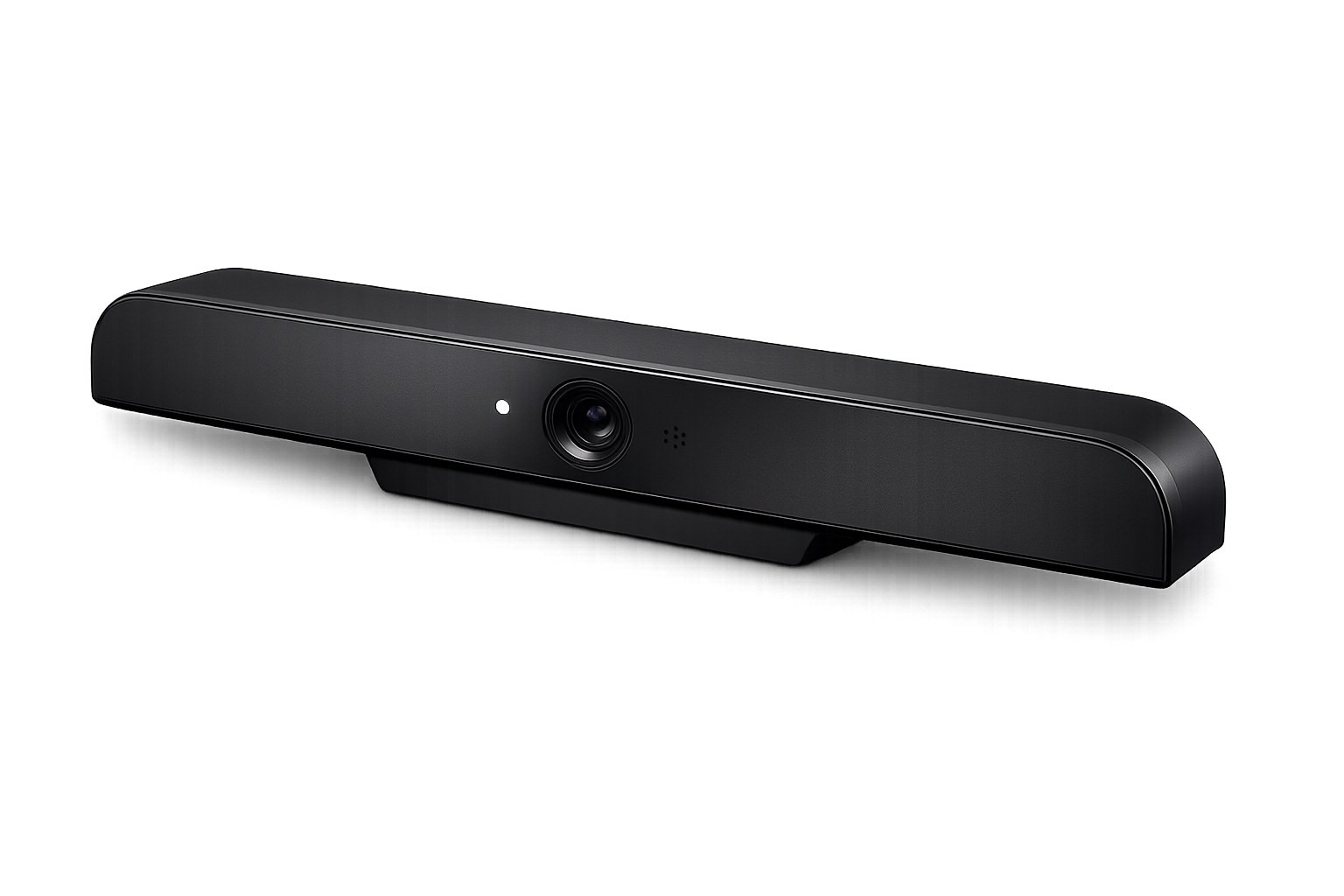

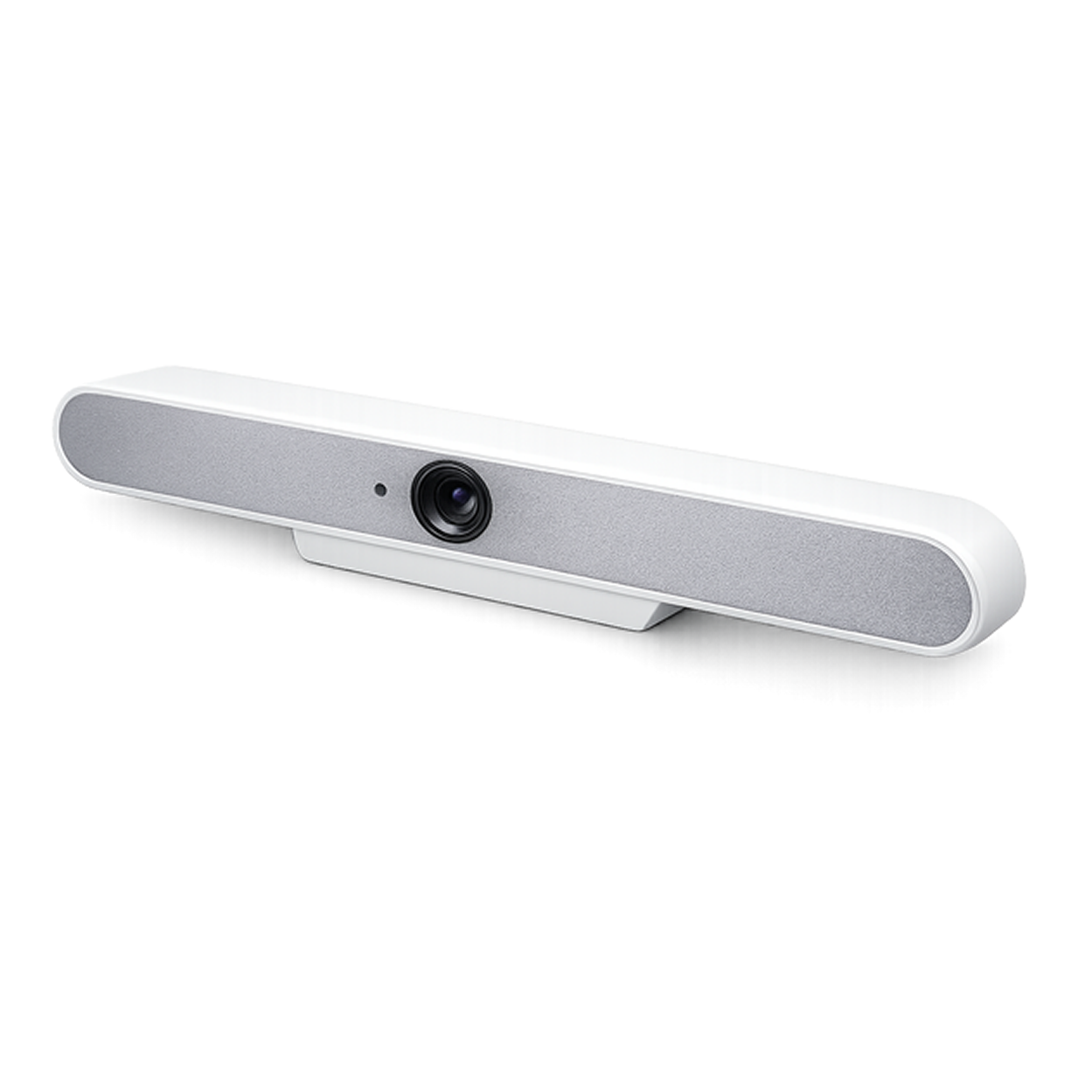

HD 1080p Camera Compatible for hybrid and remote classrooms.
Screen Share Insta Share projection system.
Built-in Speakers Integrated speakers for educational and office use.
40-Point TouchScreen High-precision capacitive touch interaction.
Product Advantages
  • Interactive display for education and office environments.
  • Designed for hybrid and remote classrooms.
  • Screen and pens resistant to germs.
  • 13MP camera, speakers, and 8 built-in microphones.
  • Insta Share projection system for content sharing.
Interfaces
Front interface

Front Interface

Quick front access for frequently used connections.

Optional PC module

PC Module (Optional)

Compatible with OPS or mini/micro PC with wall-mounted base.

Display
DISPLAY
Screen Size
65” · 75” · 86” · 98” · 110”
Aspect Ratio
16:9
Display Area (mm)
1429×804 / 1650.24×928.26 / 1895.04×1065.96 / 1880×1065 / 2426×1370
Resolution
4K UHD 3840×2160
Brightness
300 cd/m²
Refresh Rate
60Hz
Viewing Angle
178°
Lifespan
≥30000 H
Operating System
ANDROID OS
System Version
Android 13.0
Chip
T982-SR
CPU / GPU
Quad-core A55, 1.9GHz · Mali G52MP2
RAM / ROM
4 + 32G
Bluetooth
Version 5.2 · 2.4GHz · 0~10m Working Distance
Wi-Fi
802.11ac/b/g/n/a · 2.4GHz/5GHz · 0~10m Working Distance
Technology
TOUCH
Detection Type
Capacitive Touch, GFF lamination method
Touch Points
40 touch points
Touch Tool
Touch, Stylus Pen, and other conductive tools
Glass Surface
5mm tempered glass, AG surface treatment
Connectivity
CONNECTION
Rear Interface
HDMI IN×2, OPTICAL OUT×1, USB 3.0×1, USB 2.0×1, TOUCH OUT×1, VGA IN×1
Additional Ports
PC AUDIO IN×1, MIC IN×1, RS232×1, RJ45 IN×1, LINE OUT×1
Security
SOFTWARE
Whiteboard
EZWrite 6.0
Screen Sharing
OPSCREEN Share
Device Management
DMS
Shortcuts
Floating Shortcuts
Security
NFC card included for access

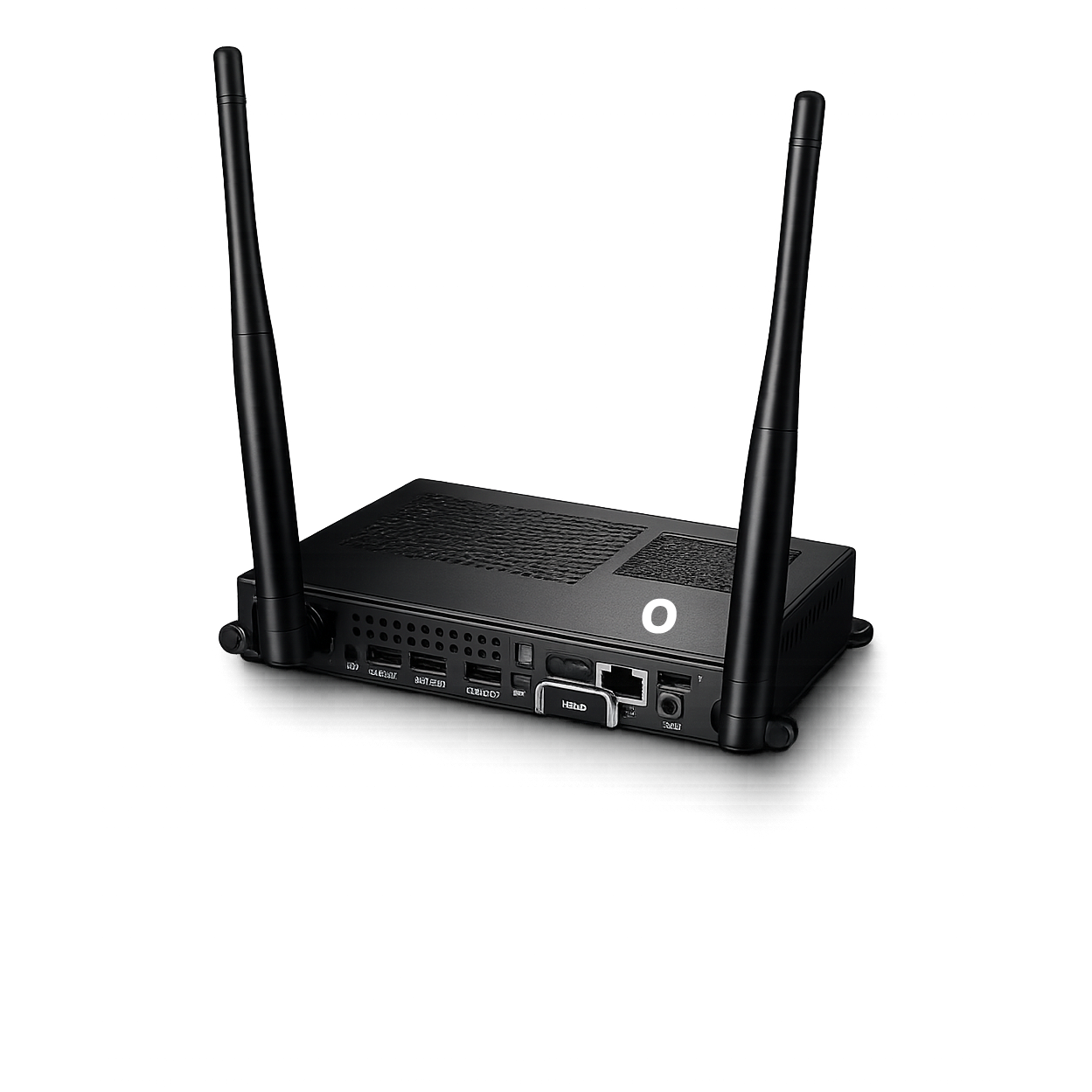

OPS
OPTIONAL
Processor
Ci5 14th gen
Storage
256GB SSD M.2 NVME
RAM
8GB
Connectivity
LAN Gigabit Ethernet / WiFi + BT
Ports
1 HDMI out / 1 DP out / 3 USB 3.0 / 1 USB 2.0
System
Windows 11 Home Single Language, non-linked license (OEM)
Features
GENERAL
Speaker Power
2 × 16W
Screen Size
65” · 75” · 85” · 98” · 110”
Max. Power
350W ± 450W
Screen Dimensions
1500×880×58 / 1700×1028×104 / 1970×1140×80 / 2232×1329×109 / 2507×1475×110
Package Dimensions
1630×170×1010 / 1860×220×1160 / 2120×200×1300 / 2505×450×1750 / 2685×450×1800
Net Weight (Kgs)
40±1 / 140±1
Package Weight (Kgs)
50±1 / 200±1
Accessories
Warranty ×1, Pens ×2, Power Cable ×1, HDMI Cable ×1, Remote Control ×1, User Manual ×1
* Information adapted from the OPSCREEN “ELITE Series Interactive Display” catalog. Some product and interface images must be replaced with the client’s final official assets.
